Parallel printer interface

Parallel printer interface
Click the diagram for more detail, or to save a copy:
1. in Internet Explorer right click on the picture and select "Save Target as..."
2. in Netscape double-click the picture to open the file, then under "File" select the "Save As" option.

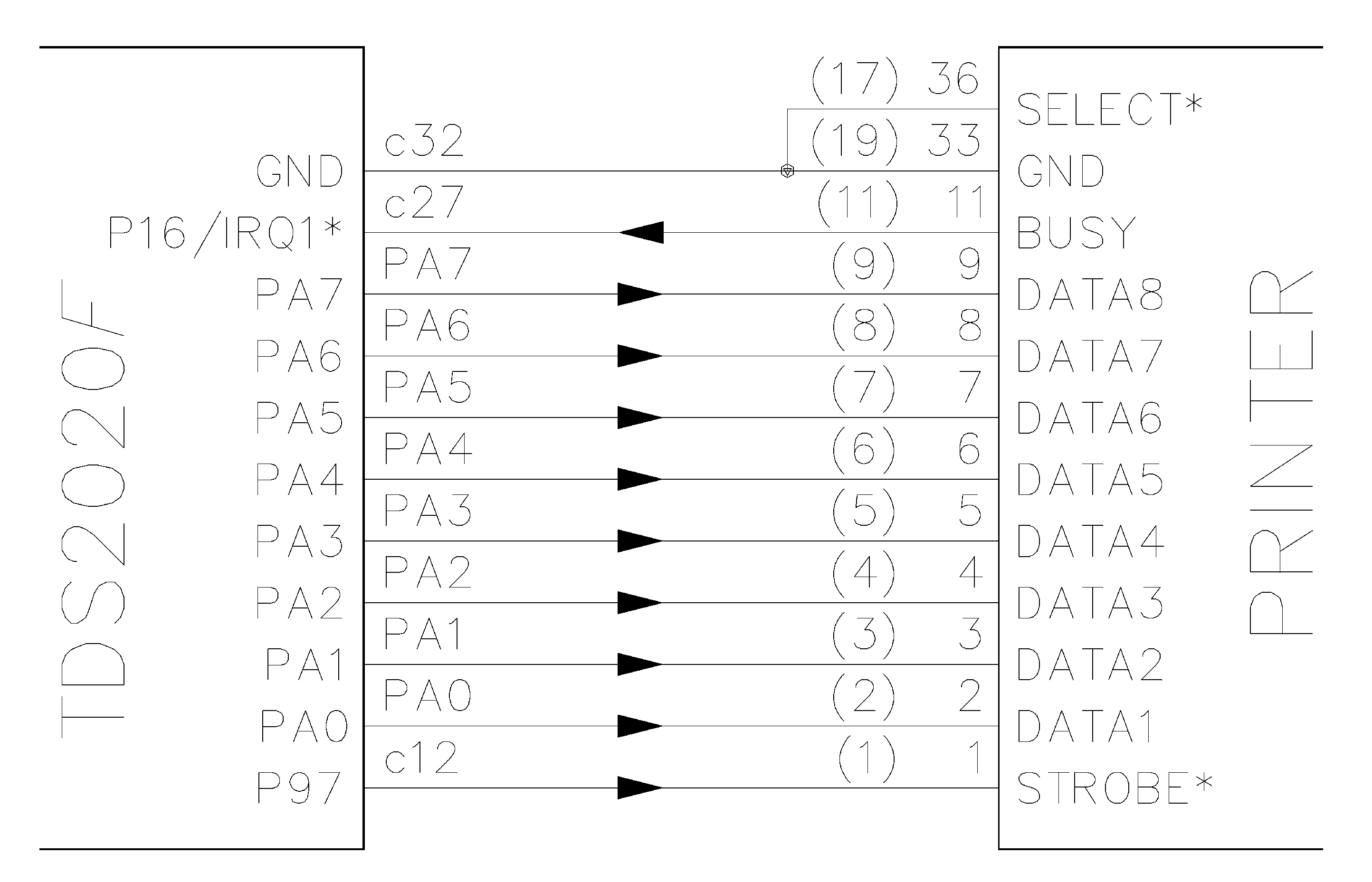

The diagram shows how a printer with parallel PC (Centronics) interface can be connected to the TDS2020F computer, most PC printers are suitable. The pins in parentheses are those at the end of a PC-to-printer cable. Support code is in the file #PRINTER.TDS supplied with the UPDATE SERVICE, page 38.
