Hardware expansion
Parallel printer
Live website search
Enter key words

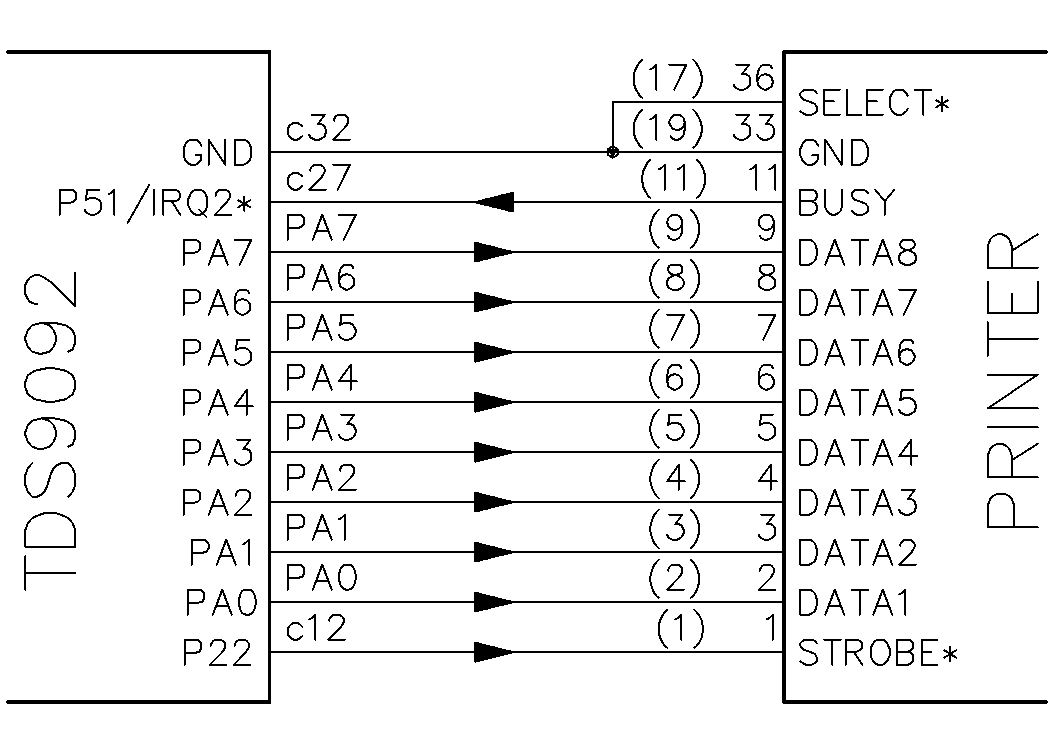

The diagram shows how a printer with parallel Centronics interface can be connected to the TDS9092 computer, most PC printers are suitable. The pins in parentheses are those at the PC end of a PC-to-printer cable. Support code is in the file _PRINTER.TDS.

Parallel printer interface

Parallel printer interface
Click the diagram for more detail, or to save a copy:
1. in Internet Explorer right click on the picture and select "Save Target as..."
2. in Netscape double-click the picture to open the file, then under "File" select the "Save As" option.
